DIY Reticle in Strelok Pro [Android]

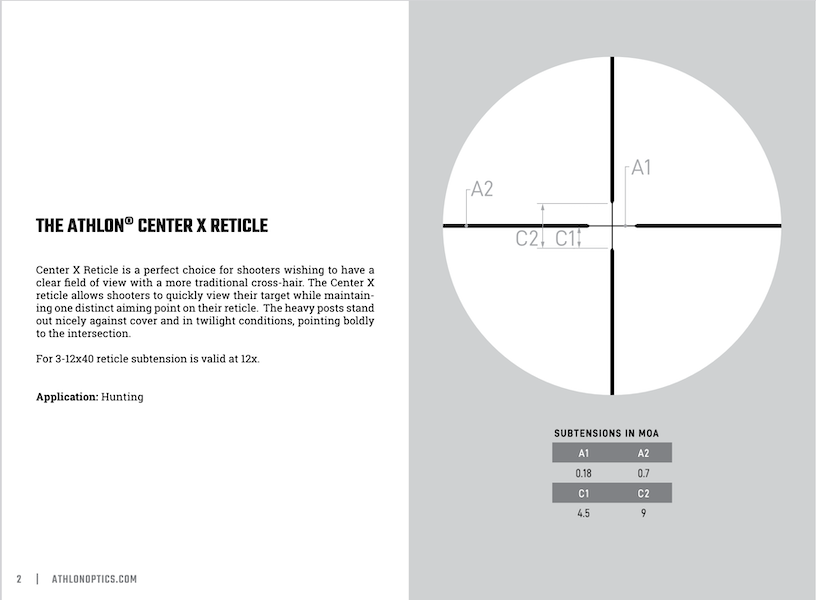

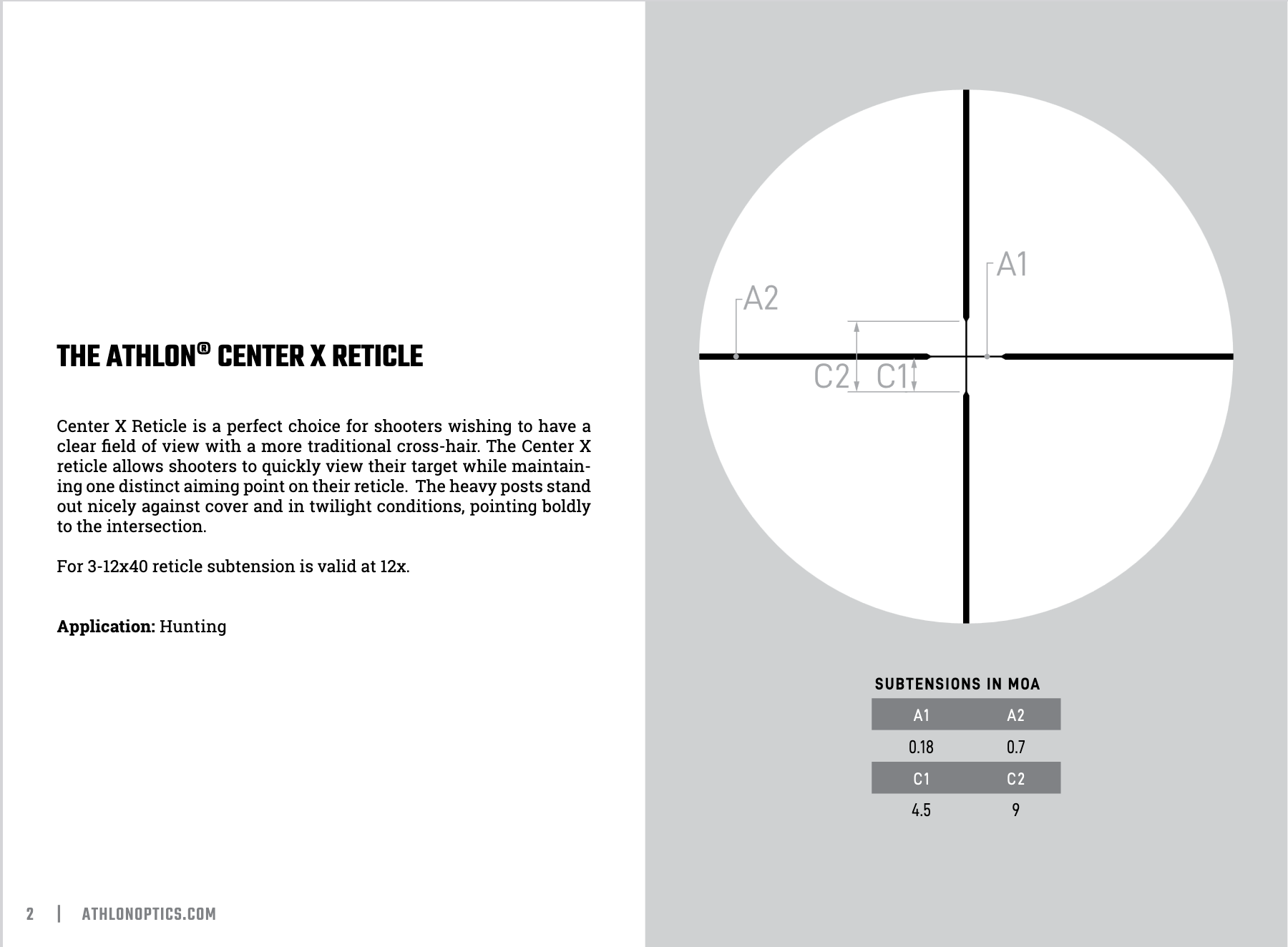

Let's take Athlon Talos 3-12x40 with Center X reticle. Here are the measurements of this reticle :

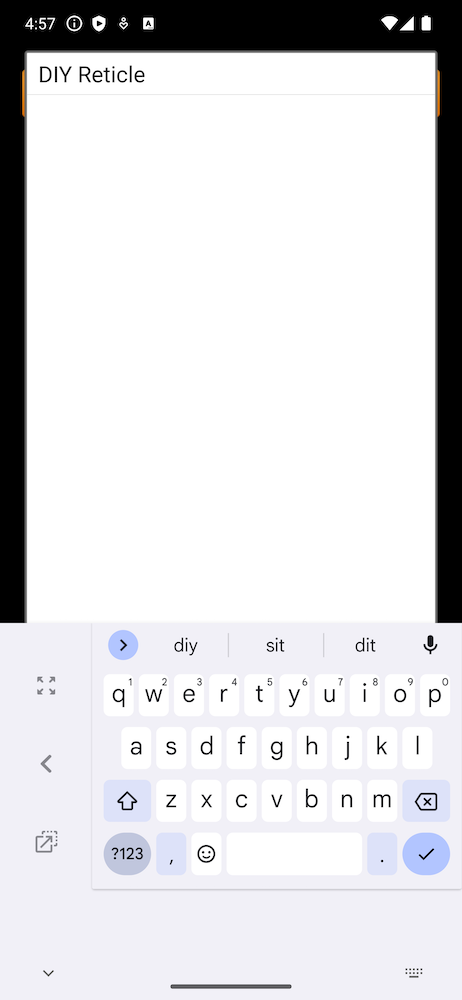

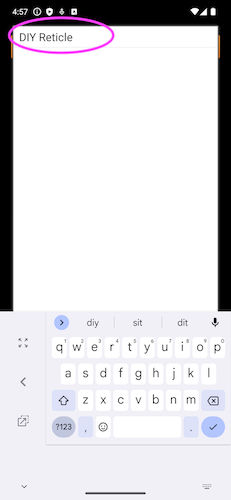

Find and select in reticle list 'DIY Reticle'

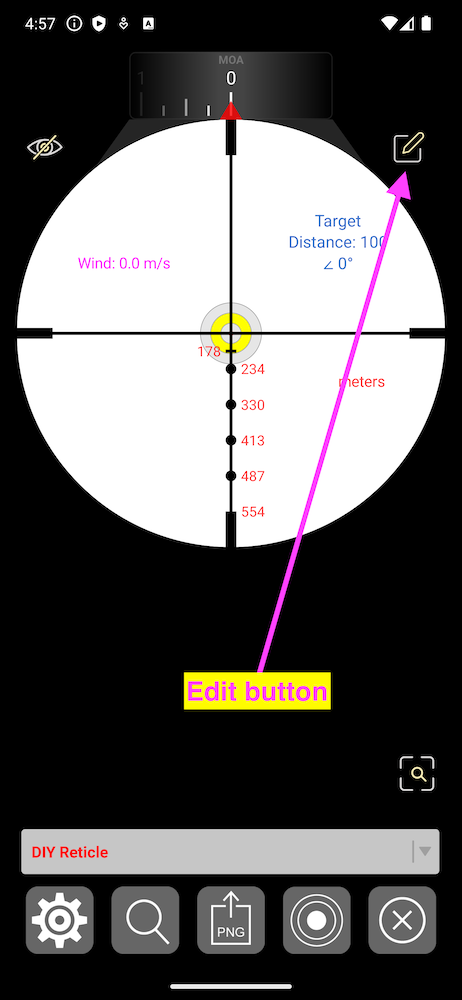

Enter to Edit mode

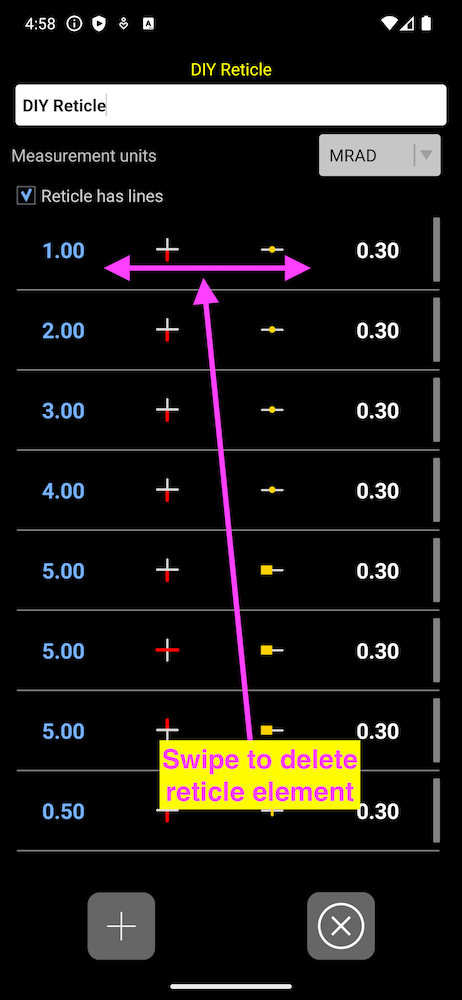

Delete all elements

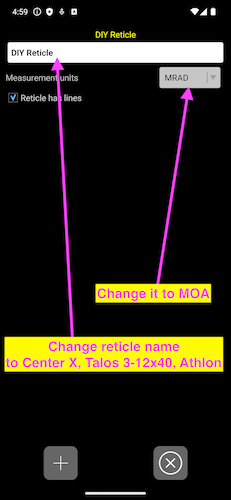

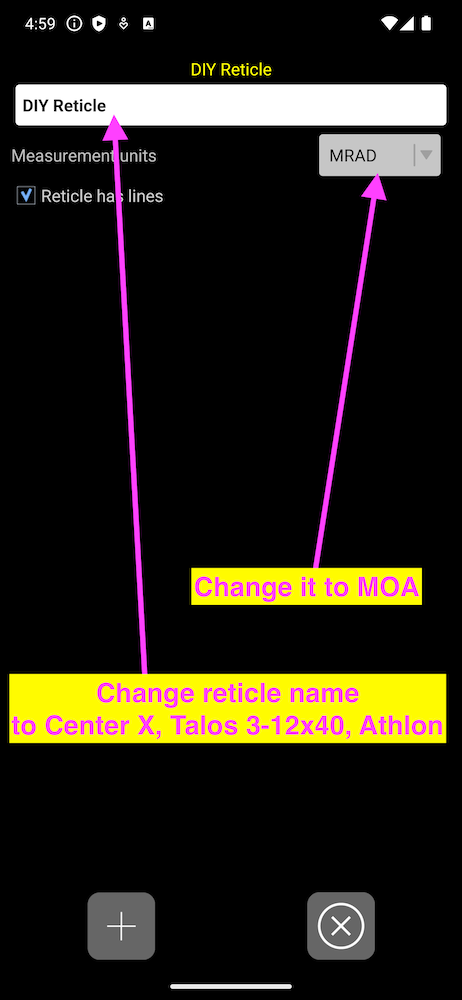

Change reticle name and measurements units

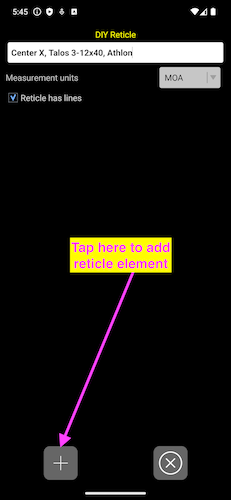

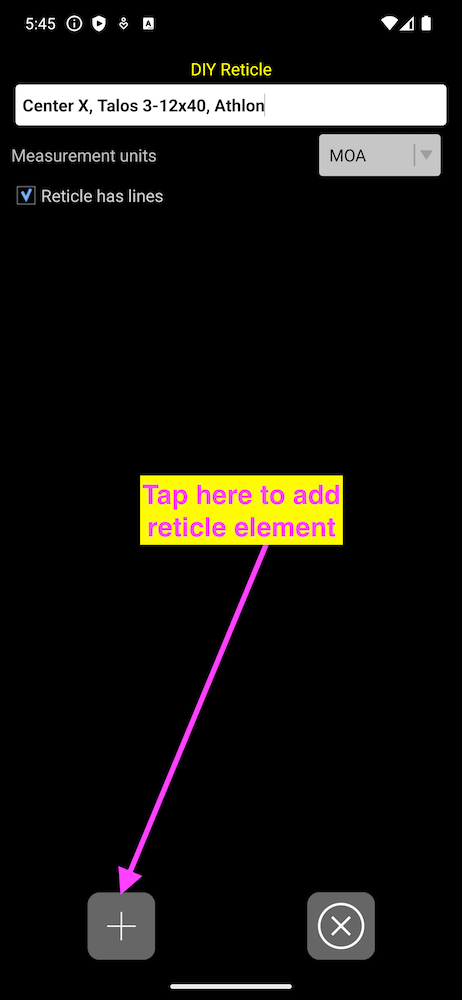

Begin reticle creation

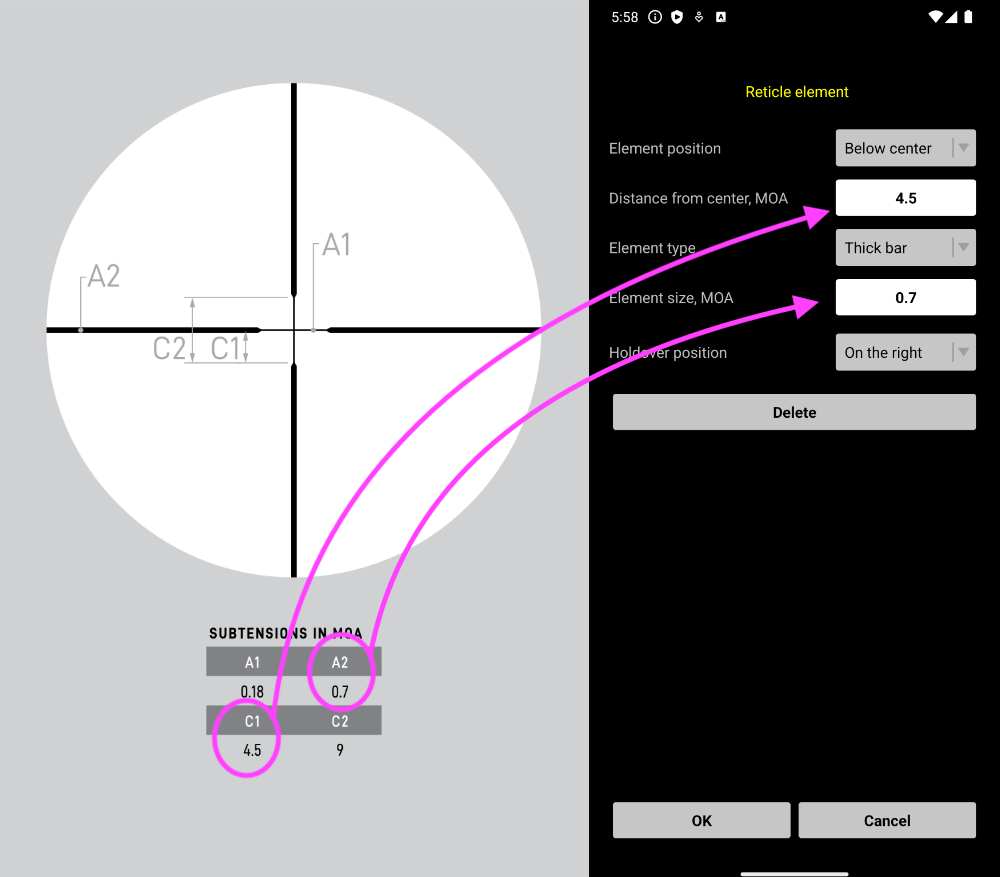

Select element typ 'Thick bar', enter measurements from Athlon document and select element position 'Below center'

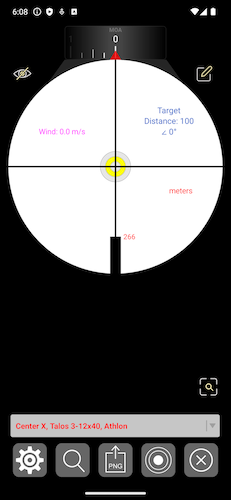

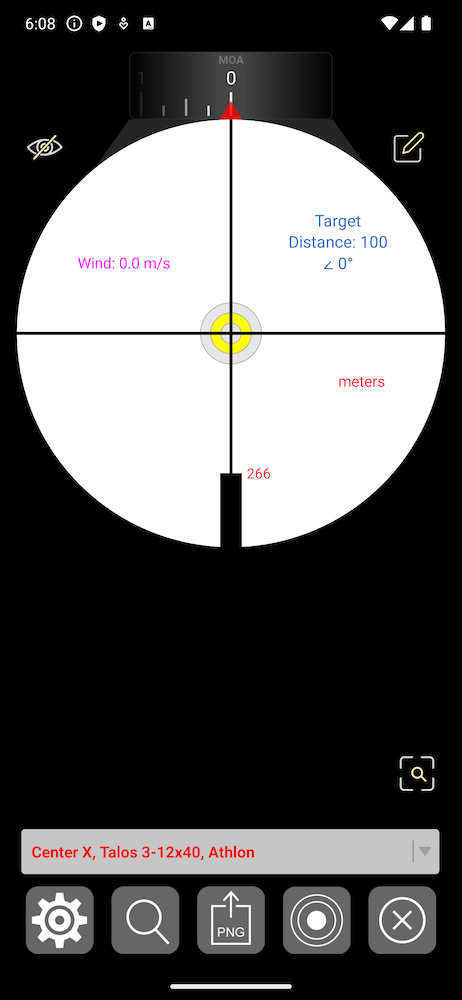

You will see created element on reticle

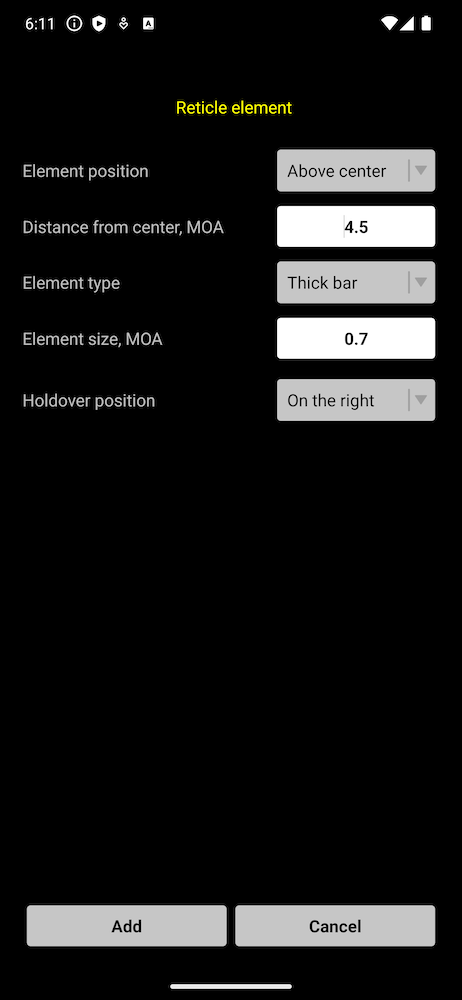

Create the same new element with element position 'Above center'

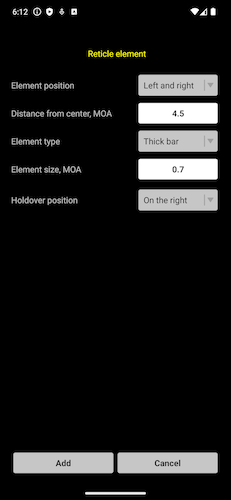

Create the same new element with element position 'Left and right'

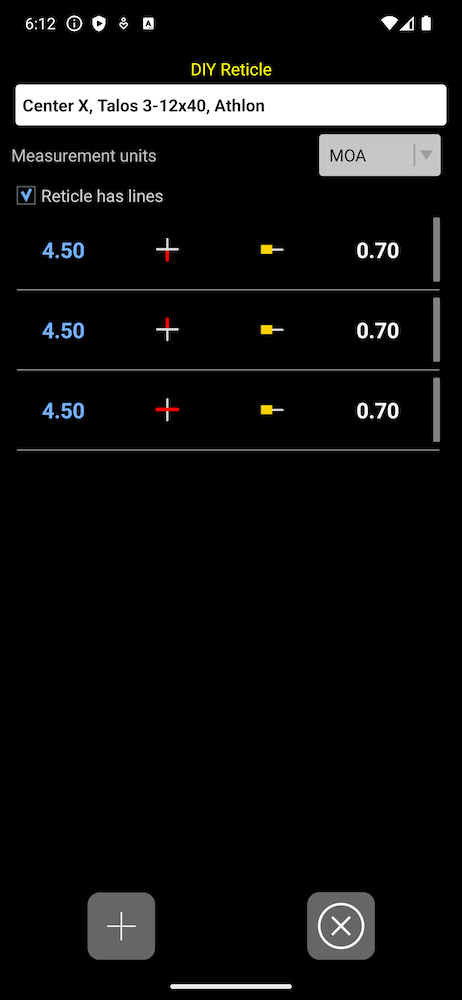

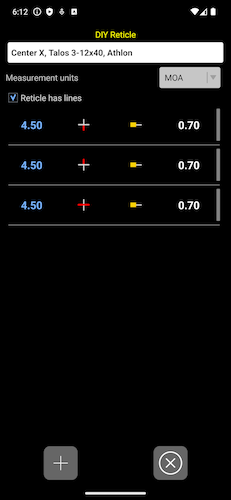

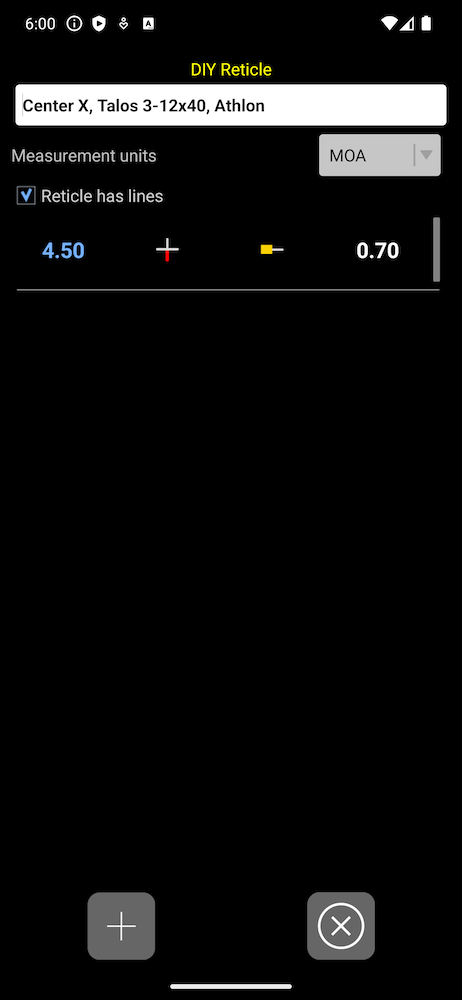

Result view of reticle element list

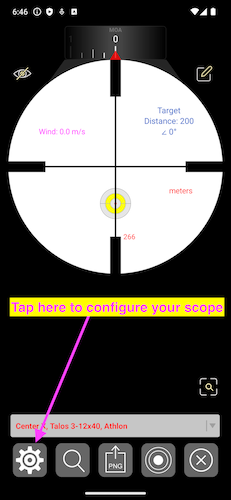

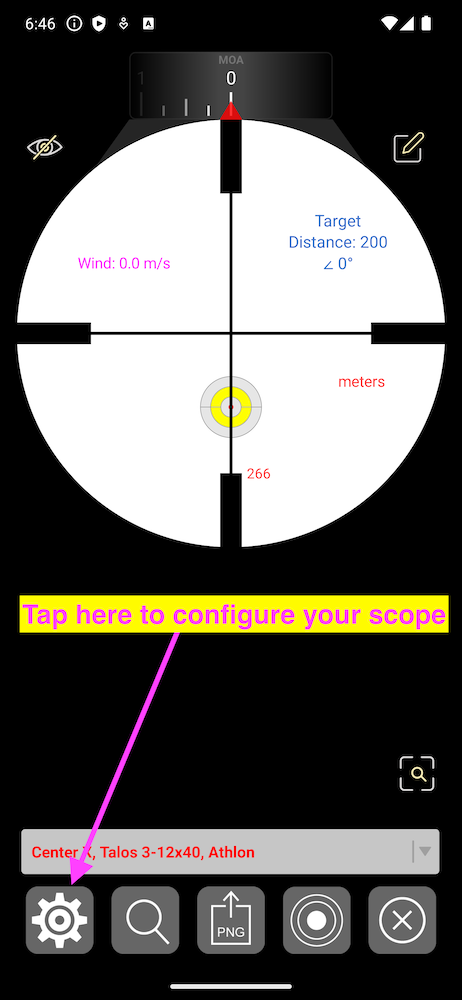

Configure scope magnifications settings

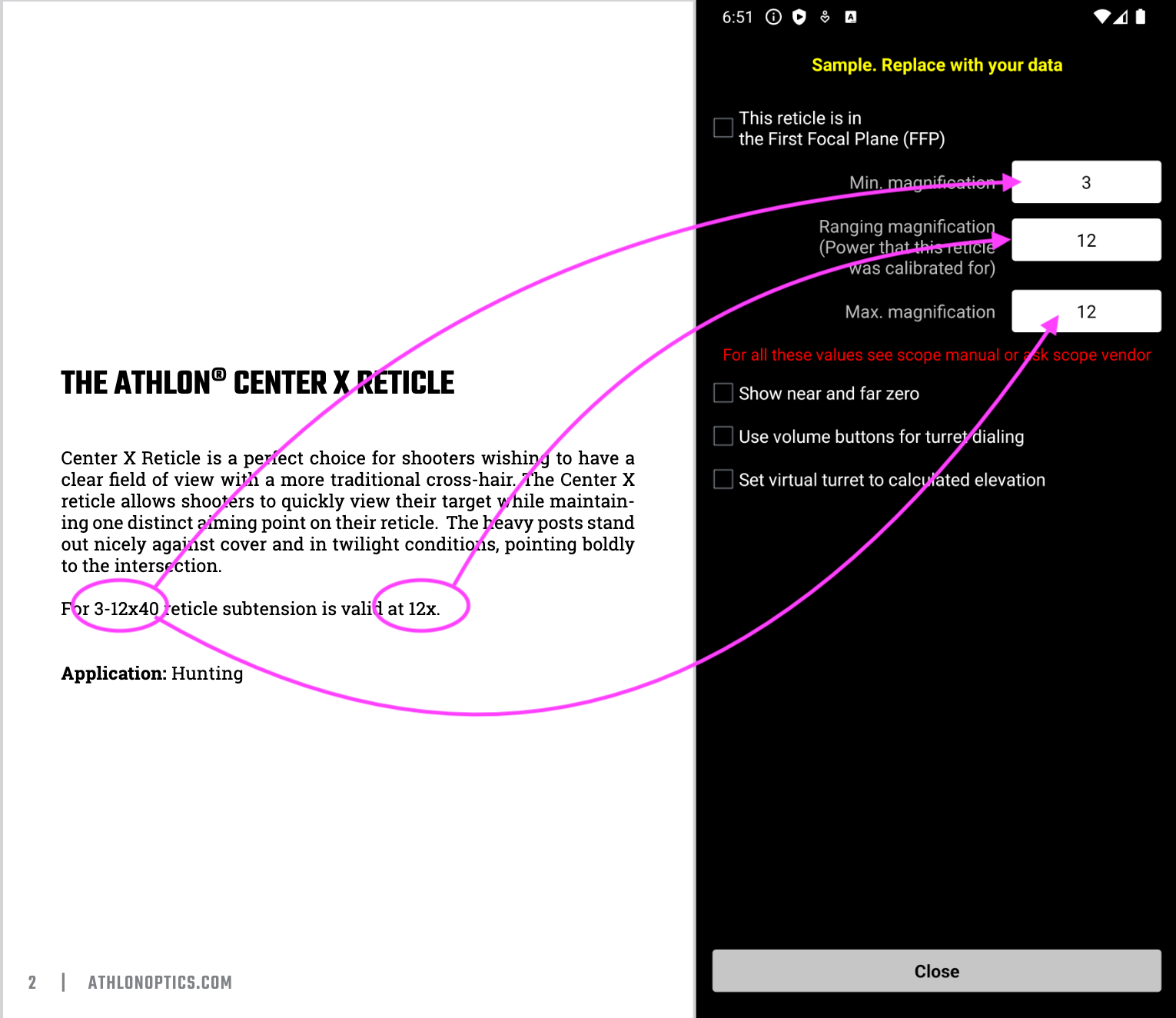

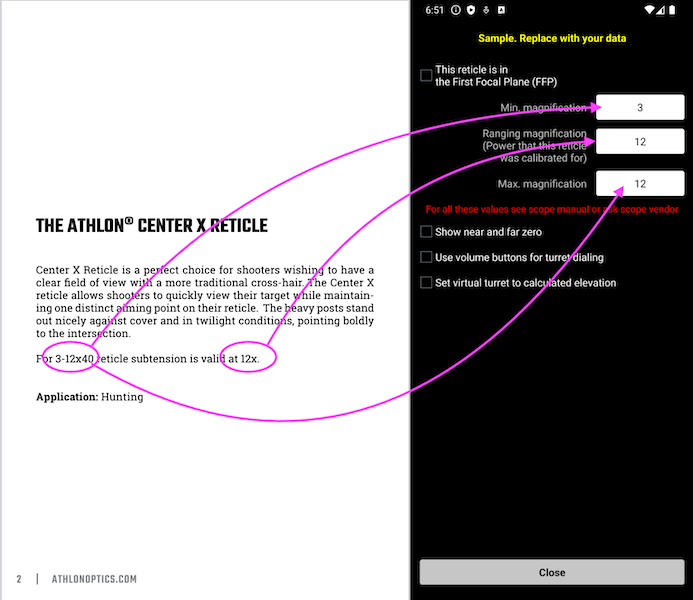

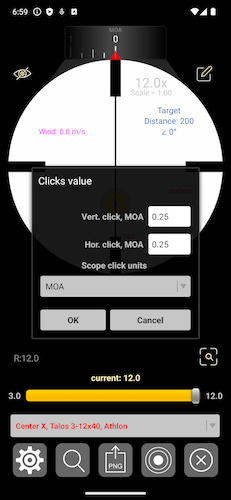

Get parameters from Athlon document

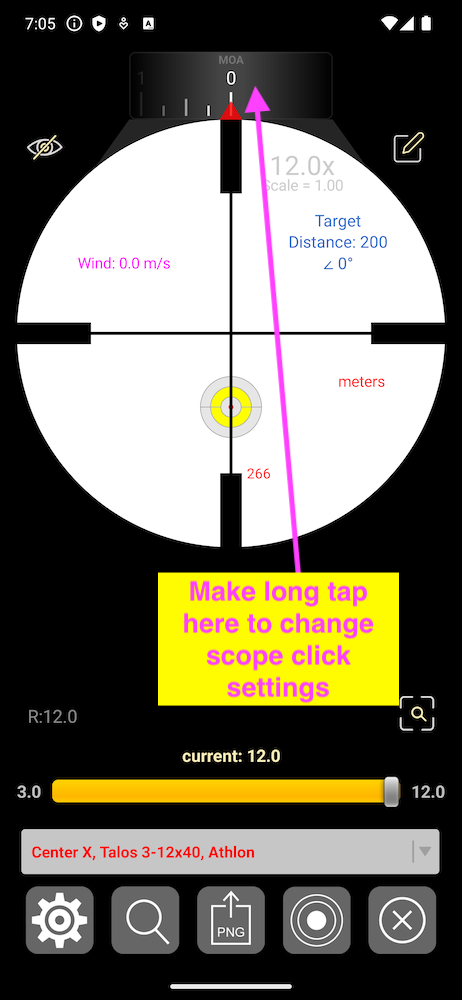

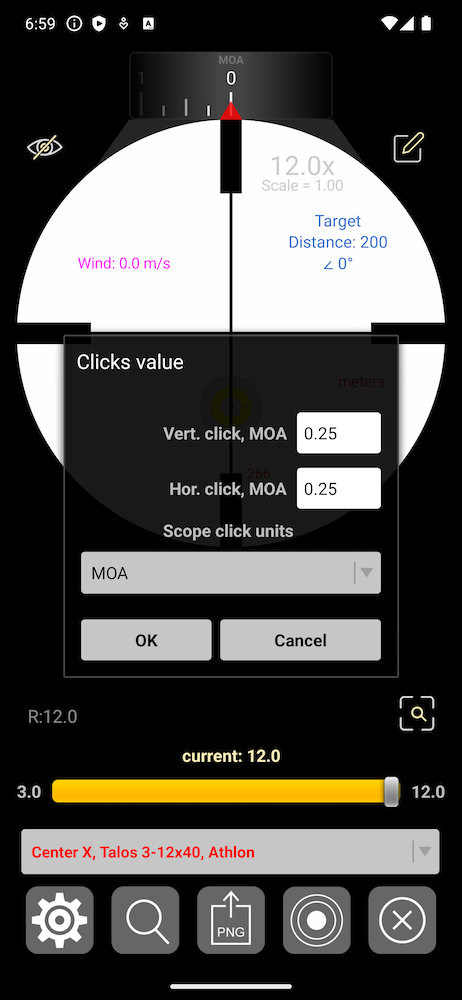

You almost ready

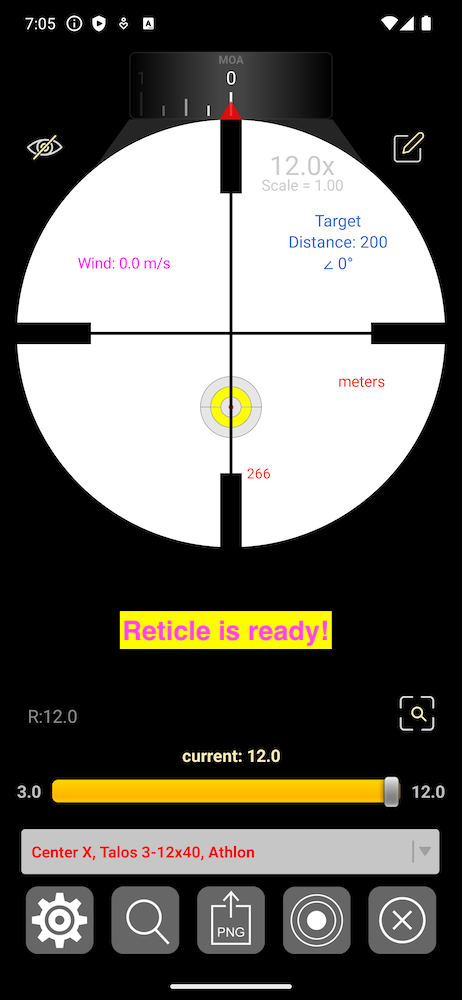

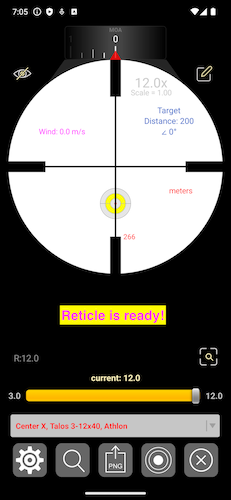

That's it!
